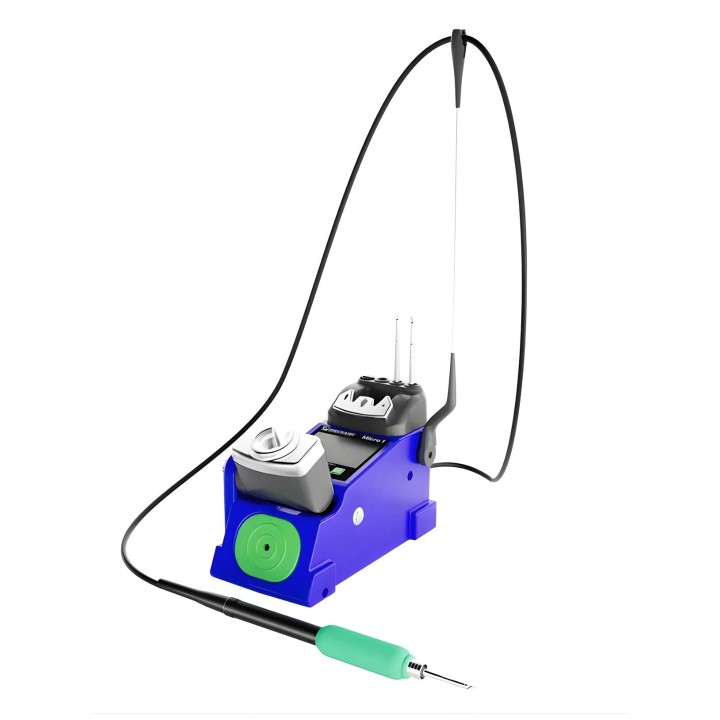

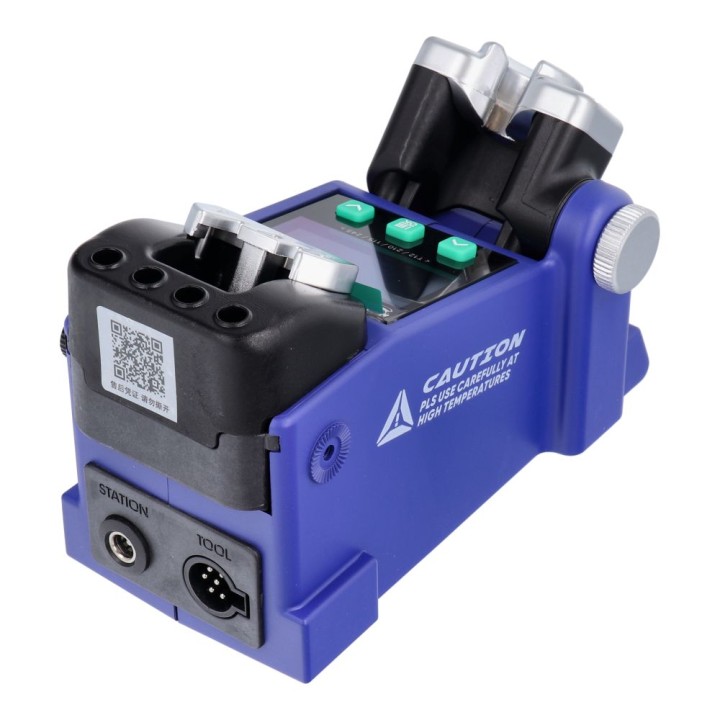

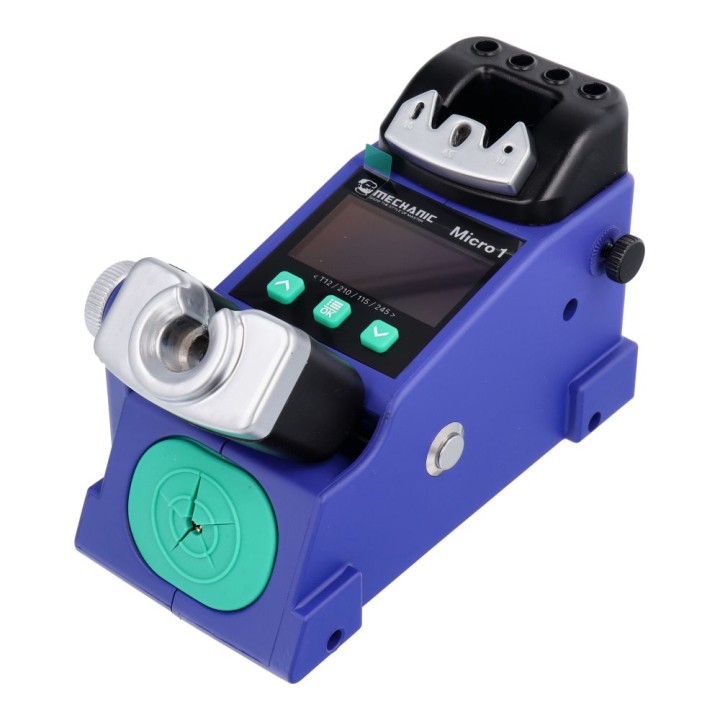

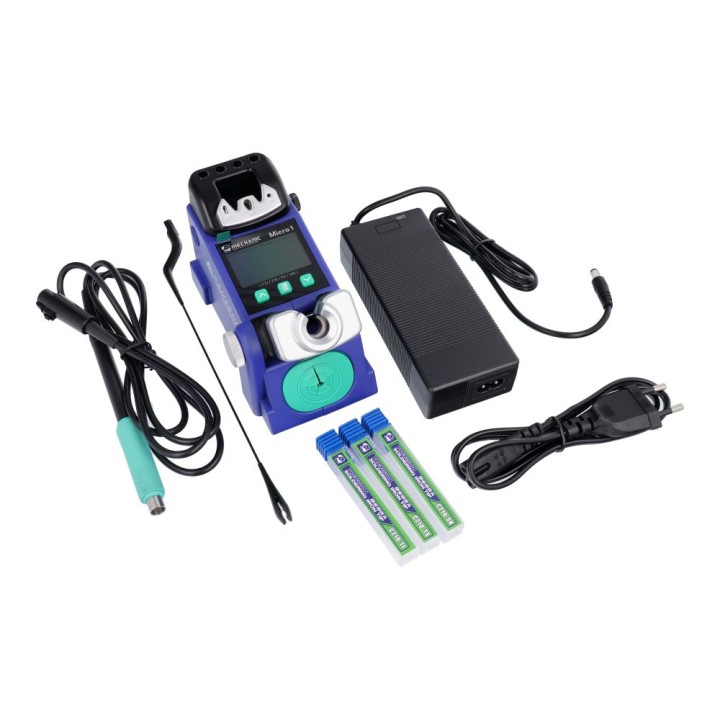

MECHANIC MICRO 1 soldering station

MECHANIC Micro 1 – Precision Nano soldering station MECHANIC Micro 1 is the ideal solution for technicians who need extreme precision in a compact format. The station is specifically designed to handle the smallest components on the market and supports C115 series tips, which are essential for making jumper connections and rebuilding solder pads under a microscope.

With advanced heating technology, the device reaches 350°C in just 2 seconds, making it ready for work almost instantly. Its minimalist design goes hand in hand with professional capabilities: the station offers excellent thermal stability and full antistatic protection (ESD), which is essential when working with the most sensitive smartphone motherboards.

Ergonomics Micro 1 is designed for efficiency. The integrated magnetic holder intelligently manages standby mode – it quickly cools the tip to extend its life and reheats it as soon as the handpiece is lifted. clear screen OLED displays the temperature in real time, giving you full control over the soldering process.

Workshop tips and use
Since Micro 1 uses extremely fine C115 tips, they are sensitive to excessive pressure.
Technical tip: Let the heat do the work – do not press the tip against the component, to avoid bending the microscopic end.
For cleaning, use a metal tip cleaner (brass wire) rather than a wet sponge to avoid thermal shocks that could weaken the heating element integrated into the tip.
Finally, always use a high-quality flux (e.g. NC-559) to facilitate fast heat transfer and achieve shiny solder joints despite the small tip size.

Specification:
Model: MECHANIC Micro 1 (Precision Nano Station)
Tip type: Compatible with the C115 series (Nano)
Heating speed: 2 seconds to reach the set temperature
Display: Digital screen OLED high-resolution
Controls: Intelligent microprocessor-controlled temperature regulation
Operating modes: Standby mode and automatic inductive wake-up
Dimensions: Micro format for maximum space savings
Safety: Full protection ESD (Electrostatic Discharge)
