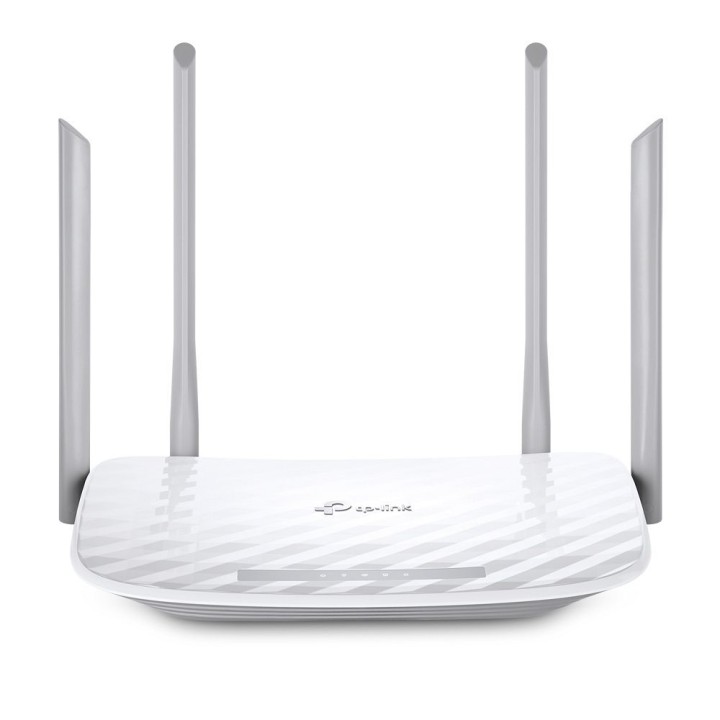

TP-LINK router Wi-Fi dual-band AC1200 5GHz TL-ARCHER C50

Archer C50 is an AC1200 dual-band wireless router. Smooth 4K streaming delivered by an AC1200 WiFi network. Four external antennas provide stable connections and extensive network coverage. Simple network management using the Tether app. Support for IGMP Proxy/Snooping, Bridge and Tagging VLAN. Supports Access Point mode.

Better connections with fast, dual-band Wi-Fi
Archer C50 offers 802.11ac wireless networking, which is 3x faster than 802.11n wireless networking. With 300Mb/s on the 2,4GHz band and 867Mb/s on the crystal-clear 5GHz band, Archer C50 is an excellent choice for smooth HD streaming, online gaming and other bandwidth-intensive activities.

Operating modes:
1. Router mode (default) – Connect an Ethernet cable to instantly create a private wireless network and provide access to all your Wi-Fi devices.
2. Access Point mode – Turn your wired network into a wireless network.
3. Range Extender mode – Expand the coverage of your wireless network.

4 Antennas and Beamforming – Maximum coverage
Equipped with four external antennas, Archer C50 creates a strong, reliable network in your home. Beamforming technology focuses the Wi-Fi signal toward your connected devices, providing better Wi-Fi coverage and higher network performance.

Parental controls
Supervise children and staff by setting access permissions in advance. Use keywords to block websites and restrict internet access.

Guest network
Give guests access to your Wi-Fi network while protecting your privacy.

More simultaneous connections
Thanks to the technology MU-MIMO, Archer C50 improves connection efficiency, helping devices achieve optimal performance. Two simultaneous data streams allow all connected devices to achieve higher speeds than ordinary AC routers.

Easy setup
Set up Archer C50 in minutes using the intuitive Tether app or the configuration page. After setup, Tether also lets you manage the network, including Parental Controls and Access Control, from any Android or iOS device.

Features:
- IPv6 support – Future-proof your network with IPv6 support.
- IPTV – Expand streaming capabilities IPTV Thanks to IGMP Proxy/Snooping Bridge and Tagging VLAN.
- Control LED – Set a schedule for the diodes LED according to your needs. Flashing lights will not disturb your sleep.
- Tether app – The Tether app lets you manage your network easily from any Android or iOS device.

Specification:
Network wireless:
- Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2,4 GHz
- WiFi network speeds: AC1200, 5 GHz: 867 Mb/s (802.11ac), 2,4 GHz: 300 Mb/s (802.11n)
- WiFi network range: Homes with 3 rooms, 4 integrated antennas providing enough power to boost the signal and cover a large area
- Beamforming: Directing the network signal toward the client to extend Wi-Fi coverage
- WiFi network performance: Medium, Two bands, distributing devices between the available bands for optimal performance
- 2×2 MU-MIMO: Allows simultaneous communication with multiple clients supporting MU-MIMO
- Operating modes: Router mode, Access point mode, Range extender mode
Safety TRANSMISSION:
- Network protection: Firewall SPI, Access control, IP address binding and MAC, Application Layer Gateway
- Guest network function: 5 GHz guest network, 2,4 GHz guest network
- WiFi network encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
FEATURES HARDWARE:
- Processor: Single-core processor

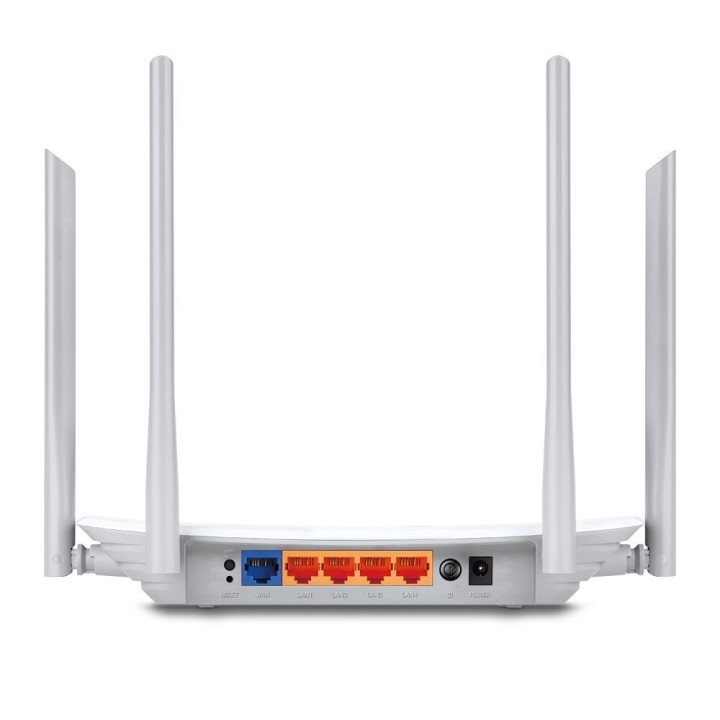

- Ethernet ports: 1 port WAN 10/100 Mb/s, 4 ports LAN 10/100 Mb/s
- Buttons: WPS/Wi-Fi, Power, Reset
- Power supply: 9 V ⎓ 0.85 A
SOFTWARE:
- Protocols: IPv4, IPv6
- Parental controls: Address filtering URL, Time-limited access
- Network types WAN: Dynamic IP address assignment, Static IP address assignment, PPPoE, PPTP, L2TP
- Quality of Service: QoS device priorities
- Forwarding NAT: Port forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, VLAN tagged
- DHCP: Address reservation, Client list DHCP, Server
- DDNS: NO-IP, DynDNS
- Management: Tether app, Management page
other:
- System requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser with JavaScript enabled, Cable modem or DSL (if required), Agreement with an internet service provider (Internet access)
- Certificates: FCC, CE, RoHS
- Operating environment: Permissible operating temperature: 0℃~40℃ (32℉ ~104℉), Permissible storage temperature: 40℃~70℃ (-40℉ ~158℉), Permissible air humidity: 10%~90%, non-condensing, Permissible storage humidity: 5%~90%, non-condensing
DATA OBTAINED DURING TESTS:
WiFi transmit power: CE EIRP: FCC:
- WiFi receiver sensitivity: 5GHz:11a 54M: 73dBm, 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm, 11ac VHT80 MCS9: -60dBm; 2,4GHz: 11g 54M: -76dBm, 11n HT20 MCS7: -74dBm, 11n HT40 mcs7: -71dBm
Appearance and CONTENTS PACKAGING:
Dimensions (W×D×H): 229.9 × 144.2 × 36.9 mm (9.1 × 5.7 × 1.5 inches)
- Package contents: Archer C50 Wi-Fi router, power adapter, RJ45 Ethernet cable, quick installation guide
