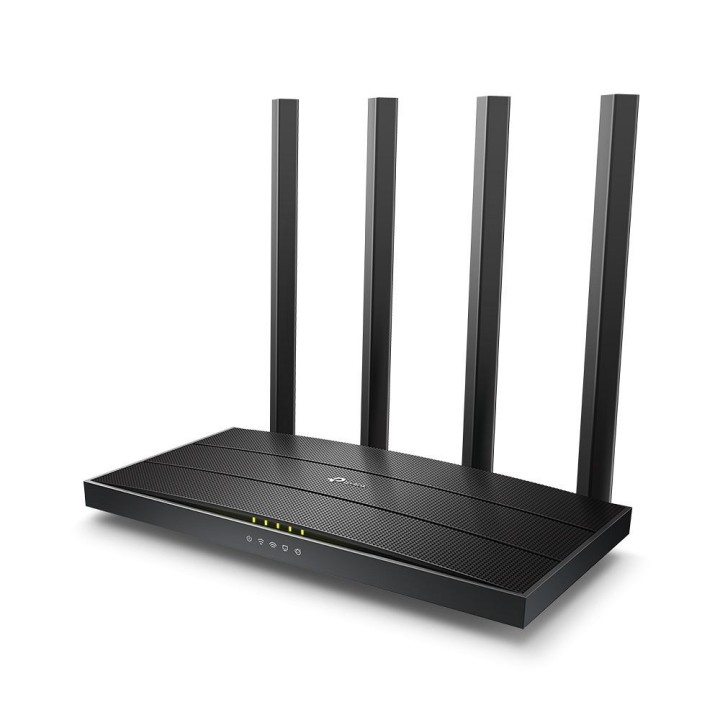

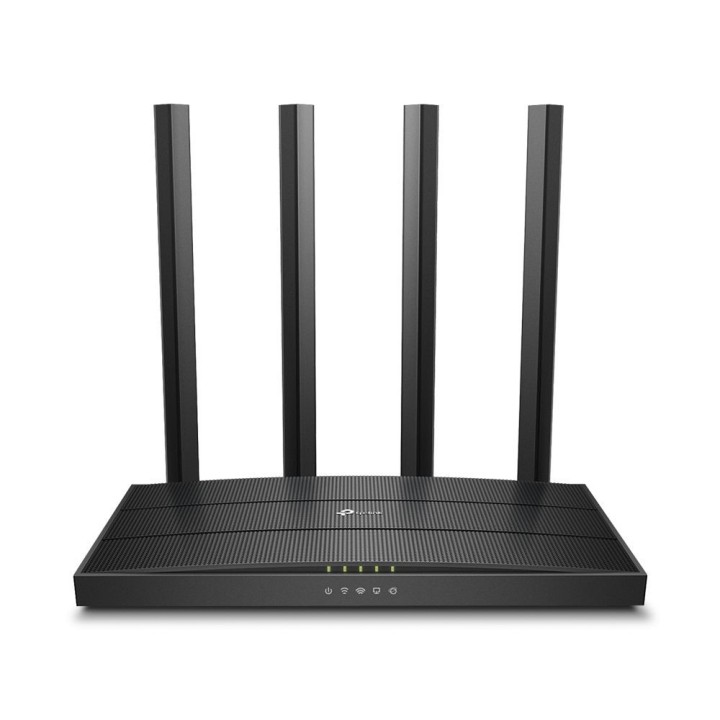

TP-LINK router Wi-Fi dual-band 2,4GHz 300Mbps, 5GHz 867 Mbps TL-ARCHER C6

Gigabit wireless router MU-MIMO AC1200. Dual-band AC1200 WiFi – 867 Mb/s on the 5 GHz band and 400 Mb/s on the 2,4 GHz band. MU-MIMO – Technology MU-MIMO allows connections to two devices simultaneously, doubling the router's performance. Extensive coverage – Four antennas and Beamforming technology combine to create a strong, reliable wireless network. AP mode – Support for AP mode allows you to create a Wi-Fi access point. Easy setup – With the Tether app available for iOS and Android mobile devices, network setup takes just a few minutes. EasyMesh – Flexible Mesh networking by connecting routers that support EasyMesh.

Non-stop entertainment with a dual-band AC1200 network
Archer C6 broadcasts two separate wireless networks on the 2,4GHz and 5GHz bands, delivering very high wireless performance. This allows simultaneous use of two dedicated wireless networks at speeds suitable for even the most demanding applications. You can use everyday, less demanding applications such as email or web browsing on the 2,4GHz band, while using the 5GHz band for more demanding, latency-sensitive tasks such as HD video streaming or online gaming.

Advanced security with WPA3
The latest Wi-Fi security protocol, WPA3, offers new ways to improve the cybersecurity of private networks. Stronger Wi-Fi password encryption and enhanced protection against Brute Force attacks guarantee the security of your home Wi-Fi network.

Whole-home Wi-Fi coverage
Four high-performance external antennas deliver a Wi-Fi signal to every corner of your home. Beamforming technology detects devices and directs a strong Wi-Fi signal toward them, even when they are far away.

More simultaneous connections with MU-MIMO
Thanks to the technology MU-MIMO, Archer C6 can send data to several devices simultaneously. Unlimited, lag-free entertainment on all devices becomes a reality. All devices receive data faster, and the Wi-Fi network is used more efficiently.

Gigabit connections that are ten times faster
With one gigabit port WAN and four gigabit ports LAN the connection can be ten times faster than standard Ethernet connections. Connect your favorite wired devices to Archer C6 – you will be impressed!

Flexible creation of a home Wi-Fi Mesh network
When there are dead zones in your home, simply add more EasyMesh-compatible devices to expand your home WiFi Mesh network. Forget about searching for a stable connection signal.
- WiFi dead zone eliminator – Eliminates areas of weak WiFi signal throughout your home.
- Smart Roaming – Uninterrupted streaming as you move around your home
- One WiFi name – No more switching between WiFi networks

Access Point mode
Archer C6 supports AP mode. When enabled, wireless devices can easily access the wired network.

Easy management with the Tether app
Download the free Tether app to your Android or iOS device. This lets you easily configure your router and network settings.

Specification:
Network wireless:
- Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2,4 GHz
- WiFi network speeds: AC1200, 5 GHz: 867 Mb/s (802.11ac), 2,4 GHz: 400 Mb/s (802.11n)
- WiFi network range: Homes with 3 rooms, 4 powerful integrated antennas providing enough power to boost the signal and cover a large area
- Beamforming: Directing the signal toward the client to extend Wi-Fi coverage
- WiFi network performance: Medium, Two bands, distributing devices between the available bands for optimal performance
- MU-MIMO: Allows simultaneous communication with multiple clients supporting MU-MIMO
- Airtime Fairness: Improves network performance by reducing inefficient use of bandwidth
- Operating modes: Router Mode, Access Point Mode
Safety TRANSMISSION:
- Network protection: SPI Firewall, access control, binding IP addresses and MAC, Application Layer Gateway
- Guest network function: 5 GHz guest network, 2,4 GHz guest network
- Server VPN: Archer C6 hardware version V4 does not have a server VPN
- WiFi network encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
FEATURES HARDWARE:
- Processor: Processor clocked at 1,2GHz

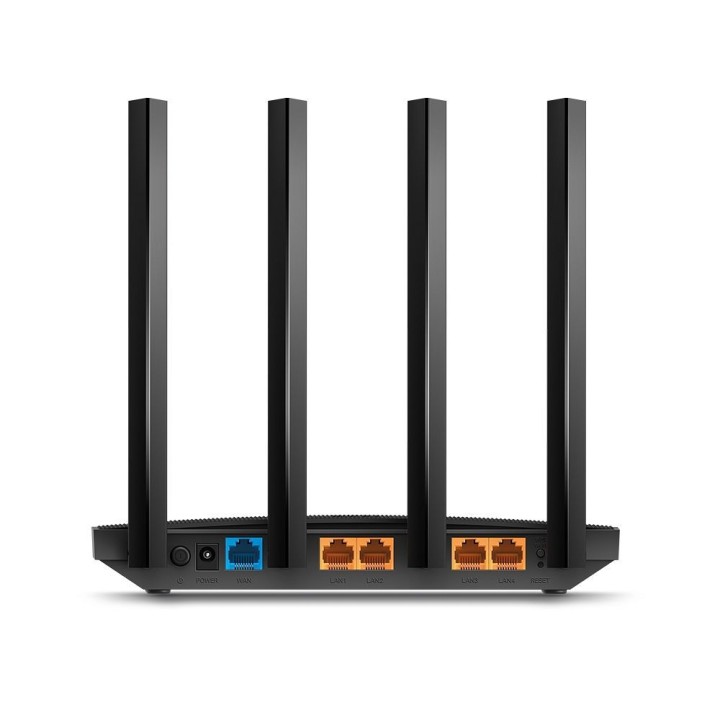

- Ethernet ports: 1 gigabit port WAN, 4 gigabit ports LAN
- Buttons: WPS/Wi-Fi, Power, Reset
- Power supply: 12 V ⎓ 1 A
SOFTWARE:
- Protocols: IPv4, IPv6
- OneMesh: OneMesh support for creating a flexible network using TP-Link OneMesh products
- Parental controls: Address filtering URL, Time-limited access
- Network types WAN: Dynamic IP address assignment, Static IP address assignment, PPPoE, PPTP, L2TP
- Quality of Service: QoS device priorities
- Cloud service: Software updates OTA, TP-Link ID, DDNS
- Forwarding NAT: Port forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, VLAN tagged
- DHCP: Address reservation, Client list DHCP, Server
- DDNS: TP-Link, NO-IP, DynDNS
- Management: Tether app, Management page
other:
- System requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser with JavaScript enabled, Cable modem or DSL (if required), Agreement with an internet service provider (Internet access)
- Certificates: FCC, CE, RoHS
- Operating environment: Permissible operating temperature: 0℃~40℃ (32℉~104℉), Permissible storage temperature: 40℃~70℃ (-40℉~158℉), Permissible operating humidity: 10%~90%, non-condensing, Permissible storage humidity: 5%~90%, non-condensing
DATA OBTAINED DURING TESTS:
WiFi transmit power: CE EIRP: FCC:
- WiFi receiver sensitivity: 5GHz: 11a 6Mbps: 93dBm, 11a 54Mbps: -78dBm, 11ac HT20 mcs8: -69dBm, 11ac HT40 mcs9: -65dBm, 11ac HT80 mcs9: -62dBm; 2,4GHz: 11g 54Mbps: -78dBm, 11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -71dBm
Appearance and CONTENTS PACKAGING:
Dimensions (W×D×H): 215 × 117 × 32 mm (8,5 × 4,6 × 1,2 inches)

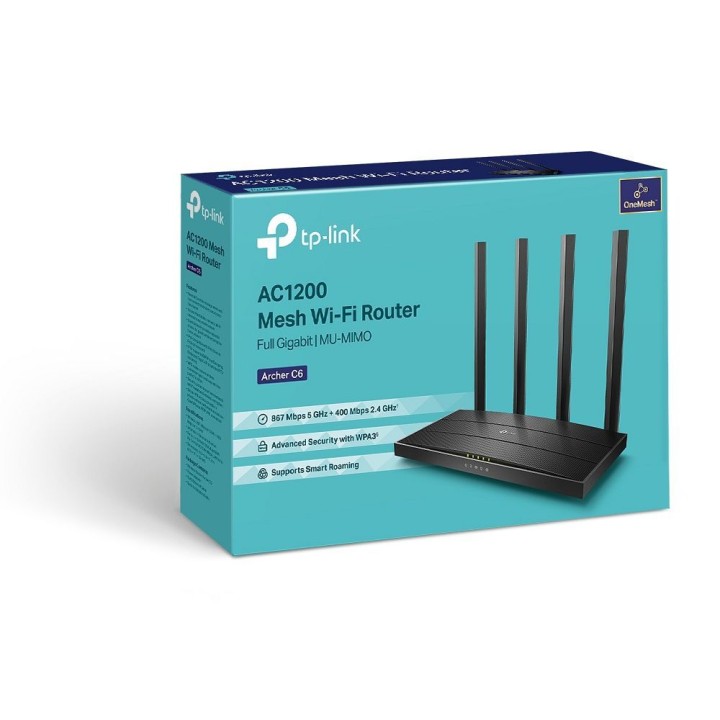

- Package contents: Archer C6 Wi-Fi router, Power adapter, RJ45 Ethernet cable, Quick installation guide
